    industrial automatic tomato sauce butter/paste/fluid pouch and bag packing machine

    Ask Lasest Price
    Brand Name : QIANGDI
    Model Number : GT-300
    Certification : ISO9001
    Price : USD3000~USD5000
    Payment Terms : T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    industrial automatic tomato sauce butter/paste/fluid pouch and bag packing machine

    industrial automatic tomato sauce butter/paste/fluid pouch and bag packing machine


    tomato sauce pouch packing introduce:


    GT-320L Series Paste-State Packaging Machine adopts Computer Controll System completly, it can finish the production's process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip, and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as shampoo.
    Sealing type:
    The bag can be sealed on three sides, four sides, or pillow style.
    Packaging material:
    Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.
    Optional device:
    Hot stamp ribbon coder(color style,ink wheel style); micro-computer controller


    tomato sauce pouch packing features:


    1.This machine can finish all the work automatically: membrane pulling-bag making-filling-cutting-code printing-cutting-production output

    2. Photoelectric and tracing system or computer system can be provided without your specific requirements, and has the advantages
    such as setting the length of the bag, the out put alarm and the speed and quantity with buttons.

    3. High speed code printer can be installed to print 1-3 lines of characters such as bath number and production and expiry date.


    tomato sauce pouch packing specifications:


    ModelGT-320L
    Sealing typeThree side sealing ,four side sealing, or back side sealing
    Bag Length50-150 (mm)
    Bag Width25-120 (mm)
    Film Width60-240 (mm)
    Packing Speed30-60 (bag/min)
    Filling temperature10-90 degree
    Filling Volume5-100 (ml)
    Power1.6 Kw
    Air Source0.65 (MPA)
    Air Consumption150 (L/MIN)
    Size760×1380×1700 (mm)
    Weight320 (kg)

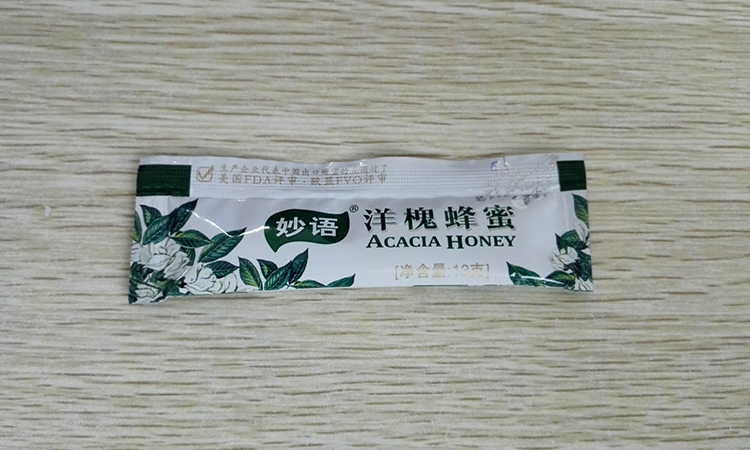

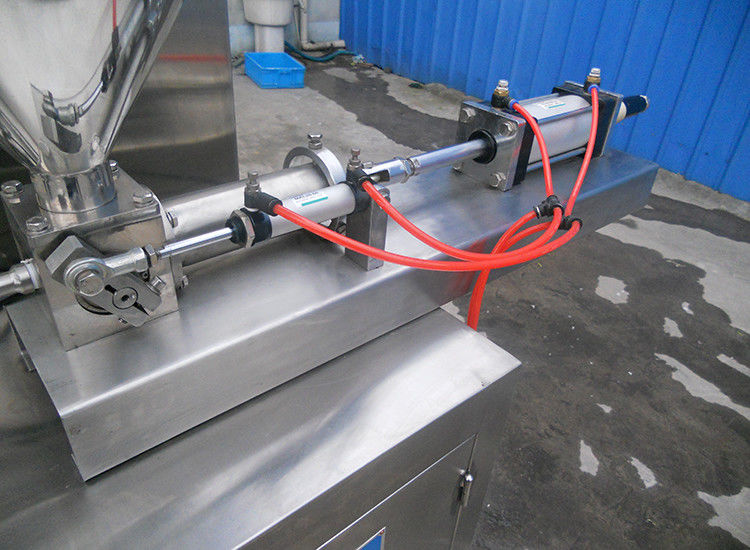

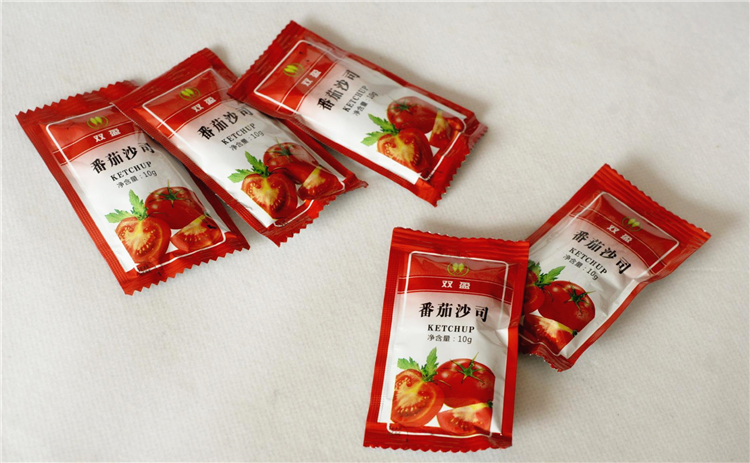

    tomato sauce pouch packing images:


    industrial automatic tomato sauce butter/paste/fluid pouch and bag packing machineindustrial automatic tomato sauce butter/paste/fluid pouch and bag packing machine


    industrial automatic tomato sauce butter/paste/fluid pouch and bag packing machine
