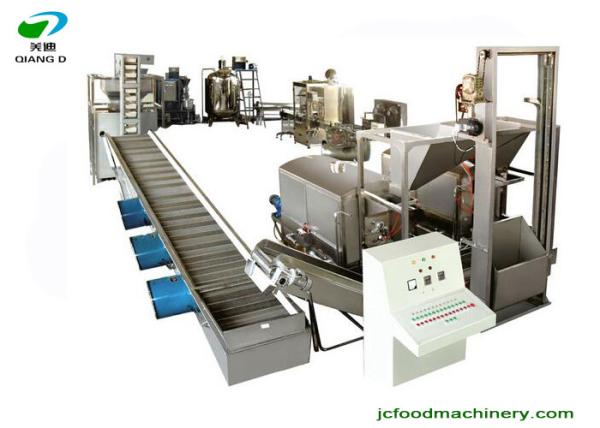

industrial automatic peanut butter production line/peanut butter
machine
peanut butter making plant flowchart:
Capacity:400-500Kg/hr
processing :
Elevator--Roasting---Cooling--Peeling--Selecting
--Milling--Mixing--Cooling--de-gasing--Liquid filling machine
Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.use
batch roaster will bake some delicious smells.
Cooling:
Peanut will be send cooling belt to cool.
Peeling:
put the roasted peanuts into peeler to take off the red skin,
the double rollers will frication the red skin, the simple cyclone
system will suck
the red skins, most of them will be put in half-piece, then fall to
the selecting conveyor, the over-roasted and
un-blanched peanut kernel is picked up by manual or mechanical.
Primary grinding
Using steel grinder to make the first grinding;
Second grinding
Using colloid grinder to make the second grinding, the fineness of
grinding is
controlled below 7um, temperature of grinding is controlled below
68C.
Mixing:
make the butter more homogeneous
Cooling:
the butter through second grinding should be cooled immediately.
The temperature should go down 45C.
Degasser :
Take out the air from peanut butter.
Storage tank:
settling down in the storage tank till the temperature drop to air
temperature.
Packing:
by the filling machine, the finished peanut butter is packed into
200g/500g/1000g bottle.
We also could design it as clients' requirement, such as capacity,
400-500kg/h
peanut butter making plant specification:
| Model | QDSHJ-01 peanut butter making plant |
| Voltage | 380v |
| power | 70kw |
| butter capacity | 400-500kg/hr |
| weight | 10000kg |
| peanut butter package | plastic bottle ,250ml, 450ml other volume can customize |
peanut butter making plant video on youtue: https://youtu.be/Lznpl2mUdAM
peanut butter making plant Working principle:
The working principle of the colloidal mill is that: Under the
effect of centrifugal force and being run by relatively high speed
between the rotating gear and the fixed gear, the liquid and the
semi-liquid materials is efficiently emulsified, homogenized,
dispersed and mixed during the course of being cut, milled and
shocked with high frequency. After that you can get the satisfied
and processed material.
peanut butter making plant Application Scope:
The colloidal mill is widely applied in sorts of products of many
fields by its advantage such as foodstuffs industry, medicine
industry, chemical industry and everyday chemical industry etc.;
the products including soybean milk, fruit jam, peanut butter,
artificial corn milk, cream, perfumery compound, pigment, greasing
oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and
so on..
peanut butter making plant detail pictures:
