industrial automatic tomato ketchup/food sauce/butter paste pouch
filling and packing machine
tomato ketchup packing machine features:
pre feeding shrink rice packaging machine
*CE Certificate
*Manufacturer&factory
*Mature experience
*Low price&high quality
tomato ketchup packing machine application:
This is suitable for filling and sealing for:
1. Solid Species: Candy, chocolate, rock candy, cookies, cakes,
peanuts, green beans, pistachios, nuts, cooked food, pickles,
puffed food, daily necessities, etc.
2. Granule Species: grain, MSG, chicken essence, sugar, melon
seeds, nuts, capsules, granular medicines, seeds, feed, pesticides,
fertilizers, chemical raw materials, etc.
3. Powder species: spices, monosodium glutamate, salt, glucose,
refined sugar, milk powder, washing powder, pesticides fertilizers,
chemical raw materials.
4. Liquid Species: rice wine, soy sauce, rice vinegar, fruit juice,
beverages, detergent and so on.
5. Thick liquid Species: tomato sauce, peanut butter, jam, chili
sauce, bean paste and so on.
6. Other materials can be bagging.
tomato ketchup packing machine work process:
1.Giving bag
2.Coding date
3.Open bag
4.Filling &vibrate
5.Sealing
6.Forming & output packages
tomato ketchup packing machine main specifications:
| Model | QD-8-200 |
| Composition | Rotary packing machine ,Auger filling machine,Auger conveyor |
| Suitable scope | Seasoning, Glucose, Refined white sugar, Pesticides etc. |
| Bag type | Stand-up, flat |
| Bag size | W:70-210mm L:100-350mm |
| Packing weight | 5-1500g |
| Packing Accuracy | ≤±1 |
| Speed | 10-60bags/min( The speed depends on the product status and filling weight ) |
| Voltage | 3Phase 380V 50HZ/60HZ |
| Total power | 5.5KW |
| Compress air | 0.6m3/min(supply by user) |
| Weight | 1200KG |
| Overall size | 2800*1500*1900mm |
tomato ketchup packing machine main introduce:
Fully-Automatic Rotary Packaging Machine is instead of
handpackaging, and improves the production efficiency and lowered
producing cost for all kinds industries.
Meet the hygiene standards of food processing machinery, and the
spare parts which touch the products or packing bags is adopted
stainless steel or other materials which accord with the food
hygiene requirements, so guarantee the hygiene and the security of
the food.
The packaging of the machine is in extensive range, can package
liquid, paste body, powder, granules, solid variety of materials,
simply choose different materials according to different
measurement devices can be filled.
The packing bag suits in extensive range, which suits for PE, PP
and other multi-layer compound film pre-made bags, including the
compound paper bags.
The package material is loss low. Using the preformed bags with
perfect pattern, and with nice sealing, thereby it enhances the
product grade.
The machines is adopted stainless steel parts to ensure the health
and safety materials, meet the GMP standard.
To meet different bags sizes, the width of the automatic
bag-feeding device can be adjusted easily and quickly by the
adjusting handle.
It is easy to operate, which is adopted OMRON PLC controller and
HITECH touch-screen HMI.
Frequency Control: The machine is adopted frequency device, so the
running speed can be adjusted freely within a certain range.
Automatic Detection: When the bag is not open or not opened enough,
it will be non-filling and nonealing, so the bags can be reused and
not wasted and it will save the production cost.
Horizontal delivery bags: the storage bag device can store more
bags, and the rate of bag-separating and bag-delivery is high.
Zipperbag Opening Device: special for zipper bags, to avoid the bag
mouth deformed or damaged.
Safety Device: it will alarm when the air pressure is unmoral or
heating pipe failure
Adopt imported plastic bearings, no need to oil, so it will reduce
the contamination for the material.
Adopt oil-free vacuum pump, it will avoid the pollution for the
production of environmental.

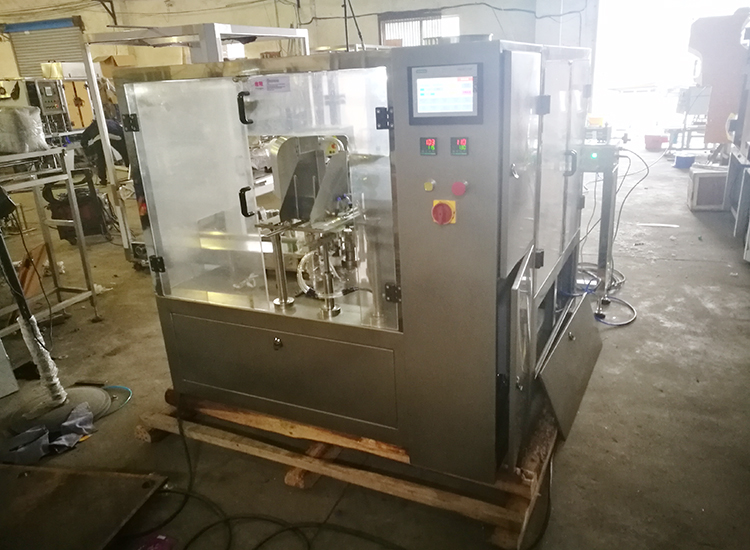

tomato ketchup packing machine picture and pouch picture:
